360° Articulating HD Industrial Videoscope with 8″ Touchscreen

Product Overview

The Sugia OmniScope C68 is a high-performance multifunctional industrial videoscope built around a motorized 360° all-way articulating probe and an 8-inch IPS HD touchscreen. As a true 360 degree articulating videoscope, it steers the probe tip through a full hemisphere — bending ≥160° in any direction — so inspectors can navigate turbine blade rows, branched pipework, and complex castings that fixed or 2-way cameras cannot reach. Steering is driven by an electric joystick on the handpiece and mirrored by a touchscreen virtual joystick, with an on-screen probe-coordinate display showing the current bending angle in real time. This dual-input design makes the C68 a precise joystick steering inspection camera: the operator dials in an exact angle, and the motorized drive holds it without spring-back while the finding is documented.

The 8-inch IPS full-view touchscreen renders the inspection image with accurate color and a wide viewing angle, reducing visual fatigue during long survey sessions. Camera heads are available from 160,000 pixels up to 2.0 megapixels, so the platform scales from routine screening to fine-defect documentation as an HD CMOS industrial borescope. Insertion tubes are fully interchangeable — ten diameters from 0.95 mm to 8.0 mm and working lengths from 1 m to 10 m — letting one host cover micro-bore access ports through large cavities. The tungsten-wire braided tube is rated IP67 for submerged and contaminated environments.

For quantitative work, the premium configuration adds a binocular stereo 3D measurement system with nine measurement modes — length, vertical, depth, multi-segment, area, missing corner, sectional, circle, and gap — at 0.01 mm accuracy with measurement error ≤ 5%. Built-in Bluetooth, WiFi, HDMI output, and LAN live streaming let supervisors and off-site experts view the inspection feed simultaneously, supporting multi-person consultation and remote expert review without a separate capture device.

Key Engineering Features

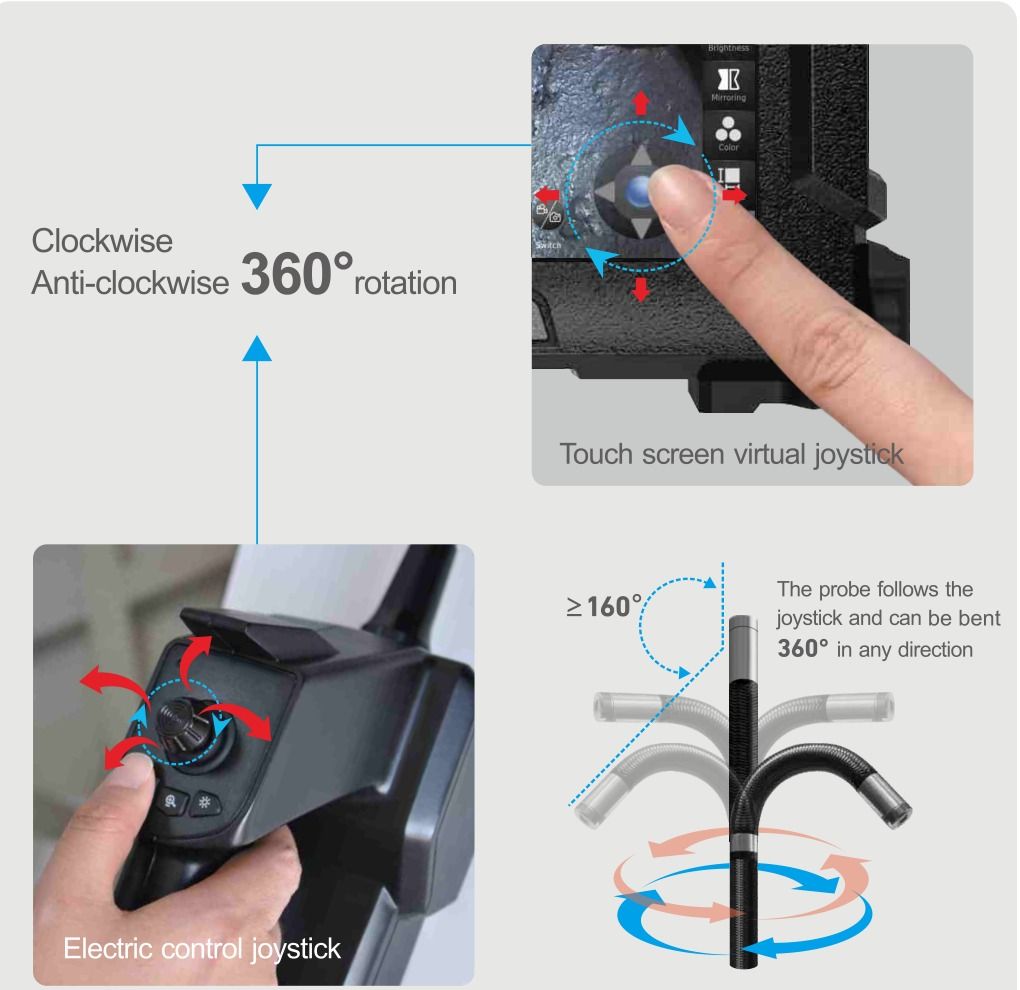

• Motorized 360° All-Way Articulation: The electric joystick steers the probe tip ≥160° in any direction with three selectable bending speeds. A touchscreen virtual joystick provides a redundant control path, and the real-time probe-coordinate display shows the exact bending angle — repeatable positioning for systematic coverage of blade rows, tube sheets, and weld seams.

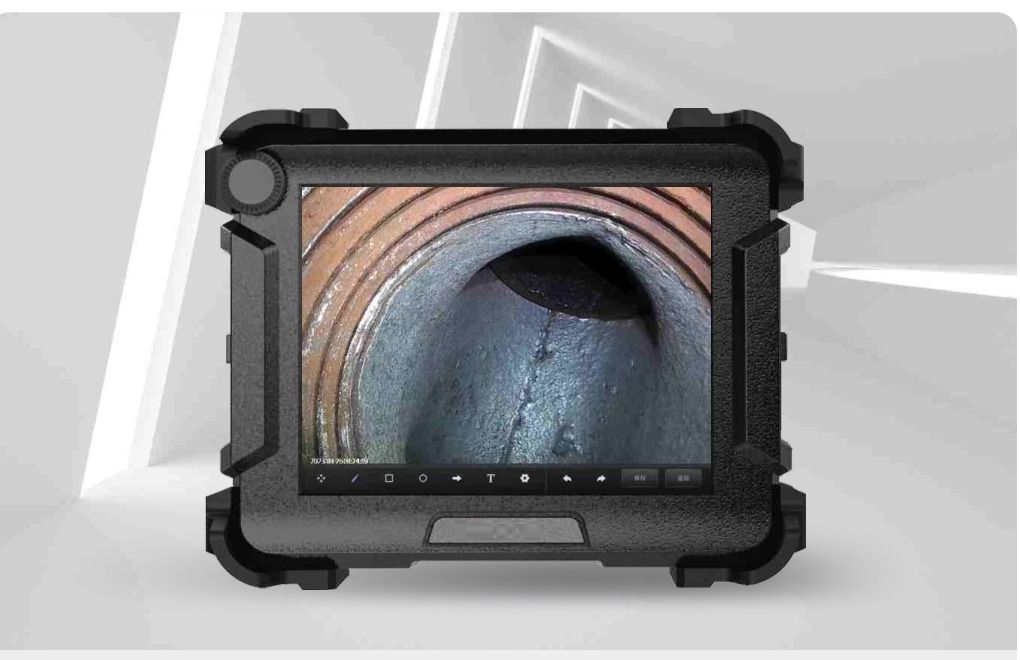

• 8-Inch IPS HD Touchscreen: The full-view industrial display reproduces true color across a wide viewing angle and responds to touch for menu navigation, zoom, and annotation — no external monitor required for on-site defect identification.
• Interchangeable Insertion Tubes: Ten diameters (0.95 / 1.2 / 1.6 / 1.8 / 2.0 / 2.8 / 3.9 / 4.8 / 6.0 / 8.0 mm) and lengths to 10 m swap onto one host. Tungsten-wire braided construction with a super-hard alloy probe housing; IP67 ingress protection.
• Optional 3D Stereo Measurement: The premium binocular stereo system measures length, depth, area, gap, missing corner, and more — nine quantitative modes at 0.01 mm accuracy, turning visual findings into documented dimensional data for fitness-for-service records.
• Connected Inspection Workflow: Bluetooth and WiFi transfer images and video; LAN live streaming shares the real-time feed to any phone on the network via QR code; HDMI drives an external display for multi-person consultation.

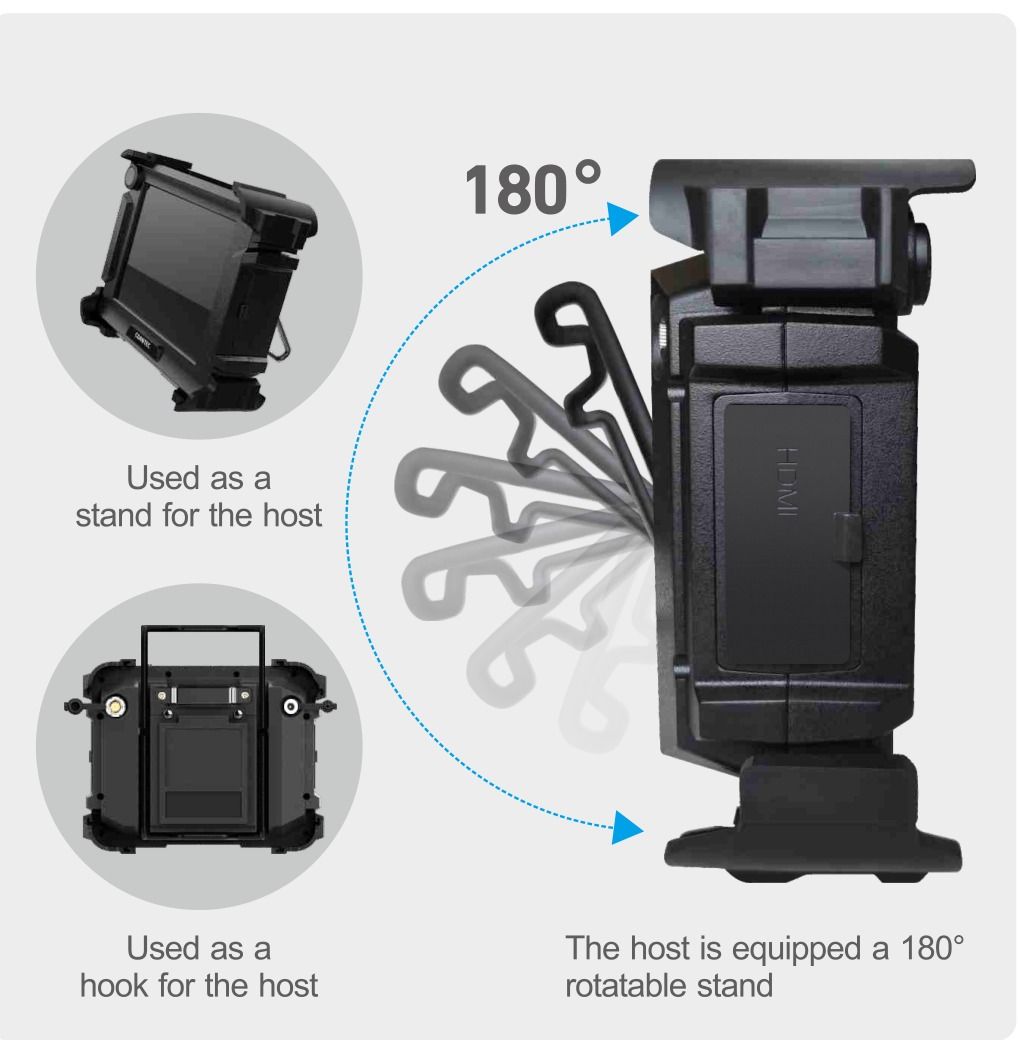

• Patented Knob Multifunction Key + 180° Stand: A single rotary/press knob (patented) switches and sets menu functions one-handed. The 180° rotatable bracket works as a desk stand or a hook, adapting the host to the inspection scene.

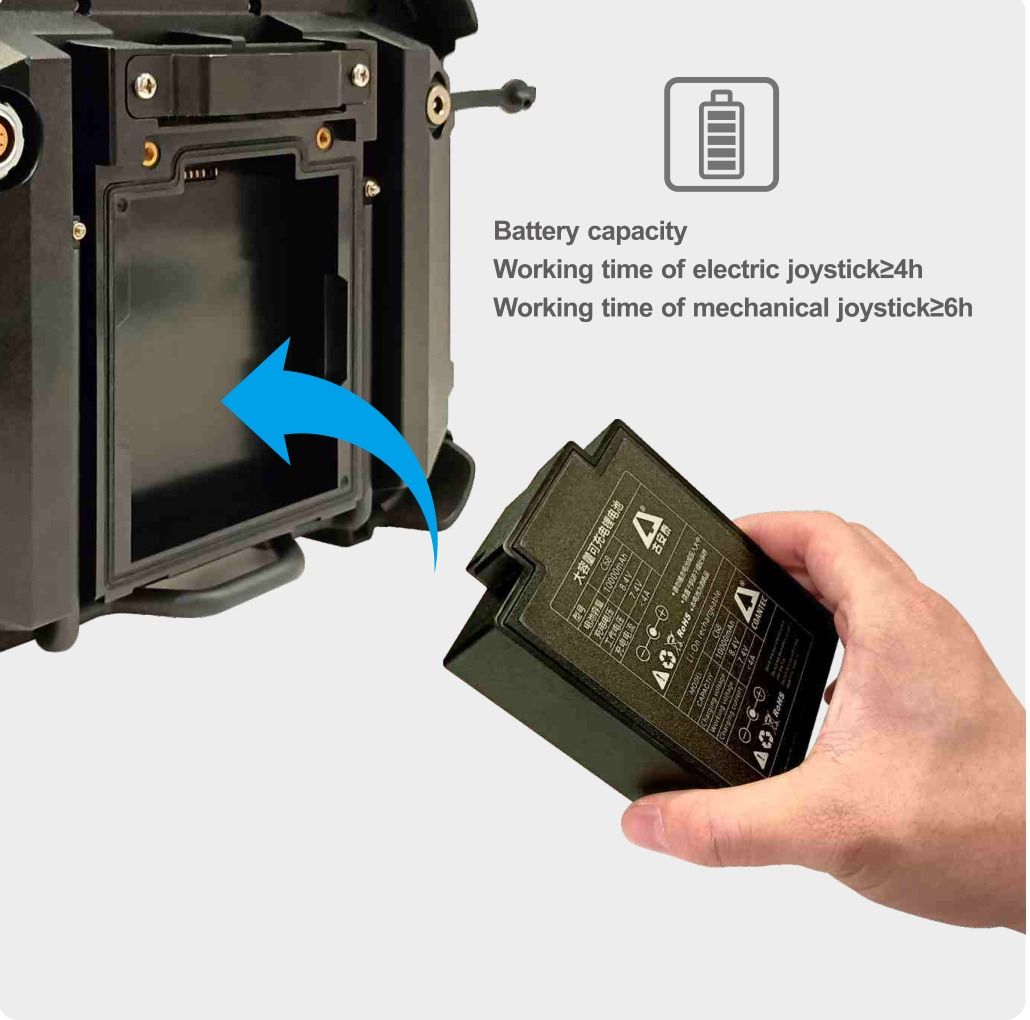

• Field Endurance: A replaceable 7.4 V / 10,000 mAh battery delivers ≥ 4 h with the motorized joystick (≥ 6 h mechanical), with a charging base for shift rotation. Four-corner TPU anti-collision cladding protects the host against drops on site.

Technical Specifications

Parameter	Value
Display	8-inch IPS HD industrial touchscreen
Articulation	360° all-way motorized; bending angle ≥160° (6 mm, 1 m tube)
Steering Control	Electric joystick + touchscreen virtual joystick; 3-level speed

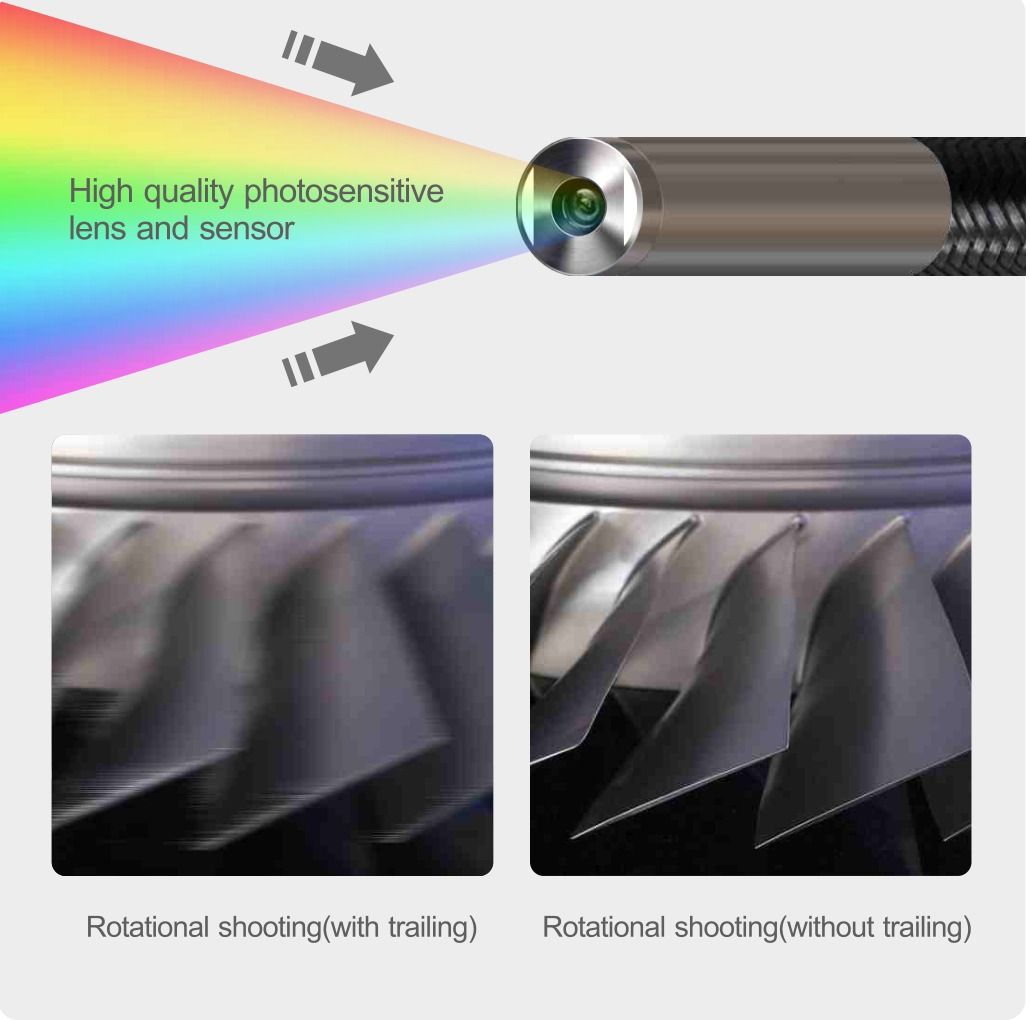

Camera Options	160,000 / 300,000 / 1,000,000 / 2,000,000 pixels
Tube Diameters	0.95–8.0 mm (ten options, ±0.1 mm), interchangeable
Working Length	1 m – 10 m (interchangeable tubes)
View Direction	Front view / side view / dual view
Field of View	70° / 80° / 100° / 120°
Illumination	Front LED, or rear LED with fiber light guide; 0–9 brightness levels
3D Measurement (optional)	Binocular stereo, 9 modes, 0.01 mm accuracy, error ≤ 5%
Capture	JPG / BMP stills, MP4 video, 1–5× real-time zoom
Annotation	Text, freehand, arrows, boxes, circles on captured images
Storage	16 GB standard, expandable to 128 GB; 2× USB 2.0 host ports
Connectivity	Bluetooth, WiFi, LAN live streaming, HDMI video output, 3.5 mm audio
Tube Protection	IP67 (insertion tube) / IP55 (host)
Battery	Replaceable 7.4 V, 10,000 mAh; ≥ 4 h motorized / ≥ 6 h mechanical
Operating Temperature	-20 °C to +60 °C (system); -25 °C to +100 °C (probe tip)
Host Dimensions / Weight	245 × 195 × 95 mm / 2.85 kg (handle 1.1 kg)
Menu Languages	English, Chinese, Japanese, Korean, French, German, Russian, and 10+ others

Target Applications

• Aerospace & Aviation: Compressor and turbine blade inspection, combustor liner surveys, and gearbox-to-blade gap measurement. As an aviation turbine inspection videoscope, the C68 combines the 360° steerable reach for blade-row access with optional stereo measurement for tip-clearance and defect-size documentation per engine-manual criteria.
• Power Generation: Boiler tube, header, and steam-path internal surveys; heat-exchanger tube-sheet inspection with interchangeable probe diameters matched to tube ID.
• Automotive Manufacturing: Cylinder bore, valve seat, turbocharger housing, and casting porosity QA on the production line, with 3D measurement for quantitative defect sizing.
• Chemical & Process Plant: Vessel, reactor, and pipeline internal inspection for corrosion, scaling, and weld integrity — IP67 tube tolerates contaminated and damp environments.
• Heavy Machinery NDT: Gearbox, hydraulic manifold, and bearing-housing inspection without teardown; LAN streaming lets remote specialists join the inspection live.
• Specialized Inspection: Micro-bore access down to 0.95 mm for precision components, and long-reach surveys to 10 m for deep cavities and storage tanks.

Available Configurations

The C68 is configured to order. Specify the insertion tube (diameter × length), camera resolution, steering package, and whether the 3D stereo measurement system is required. The table below summarizes the configurable ranges — contact our application engineers for a configuration matched to your access port, working length, and measurement requirements.

Option Group	Available Range
Tube Diameter	0.95 / 1.2 / 1.6 / 1.8 / 2.0 / 2.8 / 3.9 / 4.8 / 6.0 / 8.0 mm
Working Length	1 m – 10 m
Camera Resolution	160,000 / 300,000 / 1,000,000 / 2,000,000 pixels
View Direction	Front view / side view / dual view
Steering	Motorized joystick + virtual joystick (mechanical joystick option)
3D Measurement	Optional binocular stereo system (tubes > 4 mm diameter)
