360° Articulating Industrial Videoscope with 4.3" HD IPS Display

Product Overview

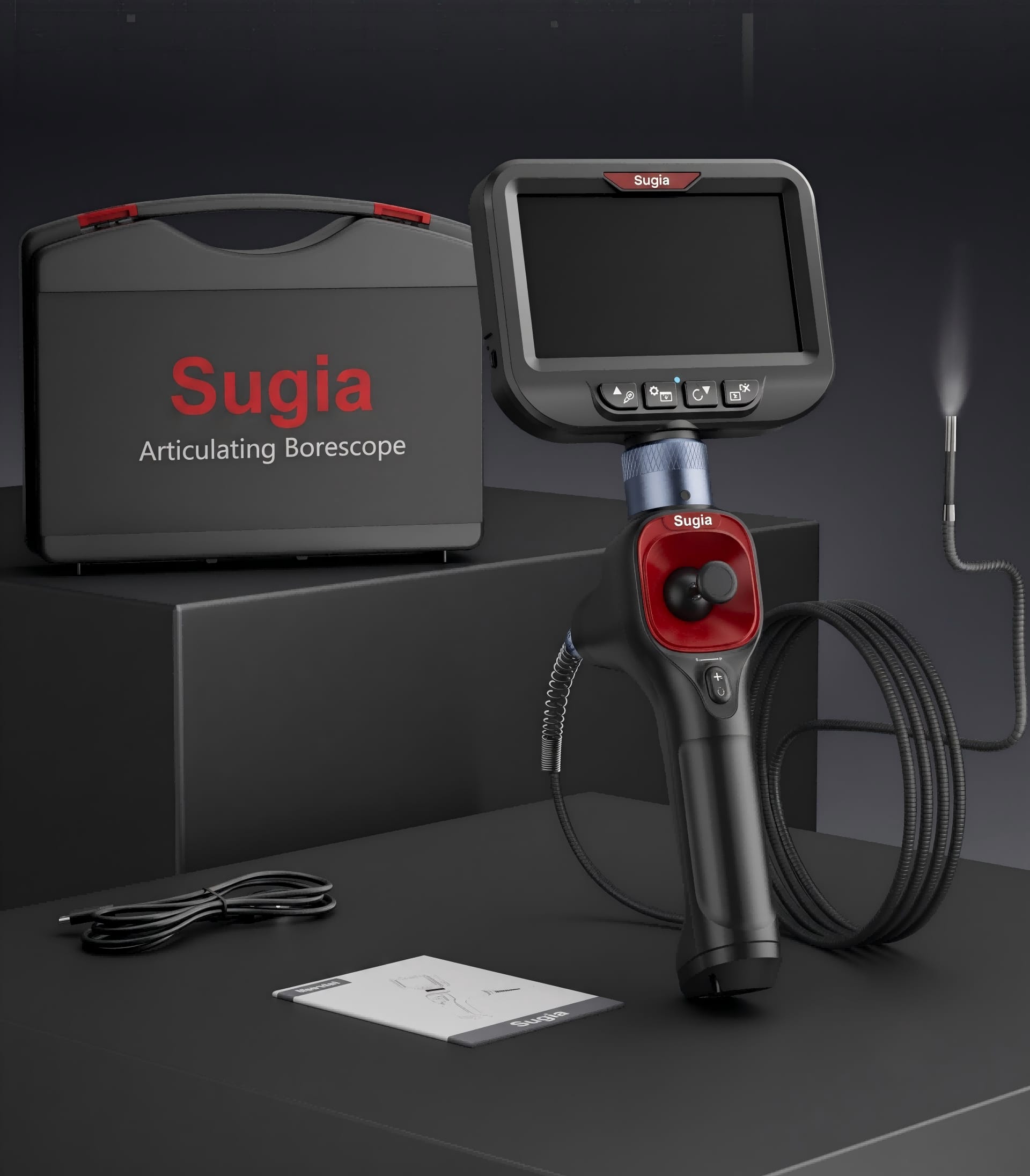

The Sugia OmniScope F6-B is a portable articulating industrial videoscope built for rigorous non-destructive testing (NDT) across pipeline, automotive, and heavy-machinery inspection programs. A mechanical joystick delivers true 360° omni-directional steering, allowing the probe tip to navigate complex bends, elbows, and branched cavities that fixed or 2-way cameras cannot reach — a true 360 degree articulating videoscope for complex geometry access. As a joystick steering inspection camera, it positions the probe tip with deliberate, repeatable control rather than motor-driven drift. A 4.3-inch IPS HD display renders defect imagery with stable color and wide viewing angles, so inspectors can identify pitting, cracking, and foreign-object debris on-site without an external monitor.

The probe is rated IP67 waterproof and dustproof, permitting submerged inspection inside pipes, tanks, and damp cavities — serving as an IP67 waterproof pipe borescope for pipeline and plumbing surveys. A built-in high-temperature alert protects the lens and sensor when the insertion tube is introduced into hot environments, signalling the operator before damage occurs. On-board image control — 4x digital zoom, 180° image rotation, and one-click photo and video capture — lets an inspector document findings as JPEG images and MP4 video clips directly to internal storage, with no separate capture device required.

The F6-B is offered in two probe diameters (6.2 mm and 3.9 mm) and three working lengths (1 m, 2 m, 3 m), covering access ports from standard pipeline inspection down to small-bore automotive and circuit inspections. A 4400 mAh battery sustains extended on-site sessions, and six adjustable LED fill lights keep the field of view evenly illuminated in dark or lightless spaces.

Key Engineering Features

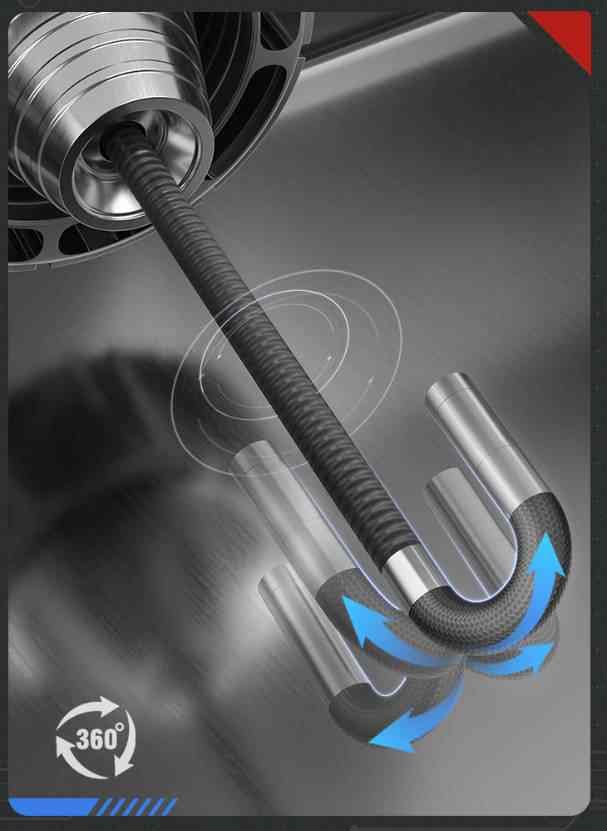

• 360° Omni-Directional Articulation: A precision mechanical joystick controls the probe tip in every direction, navigating complex pipelines and branched cavities with deliberate, repeatable positioning — no drift, no motors to surrender to magnetic fields.
• High-Definition Vision: 1.0 MP / 2.0 MP CMOS sensor paired with a 4.3-inch IPS HD display for crystal-clear defect identification with stable color across wide viewing angles.
• Rugged and Reliable: IP67 waterproof and dustproof probe, combined with a high-temperature alert system that protects the lens when the tube enters harsh or hot environments.

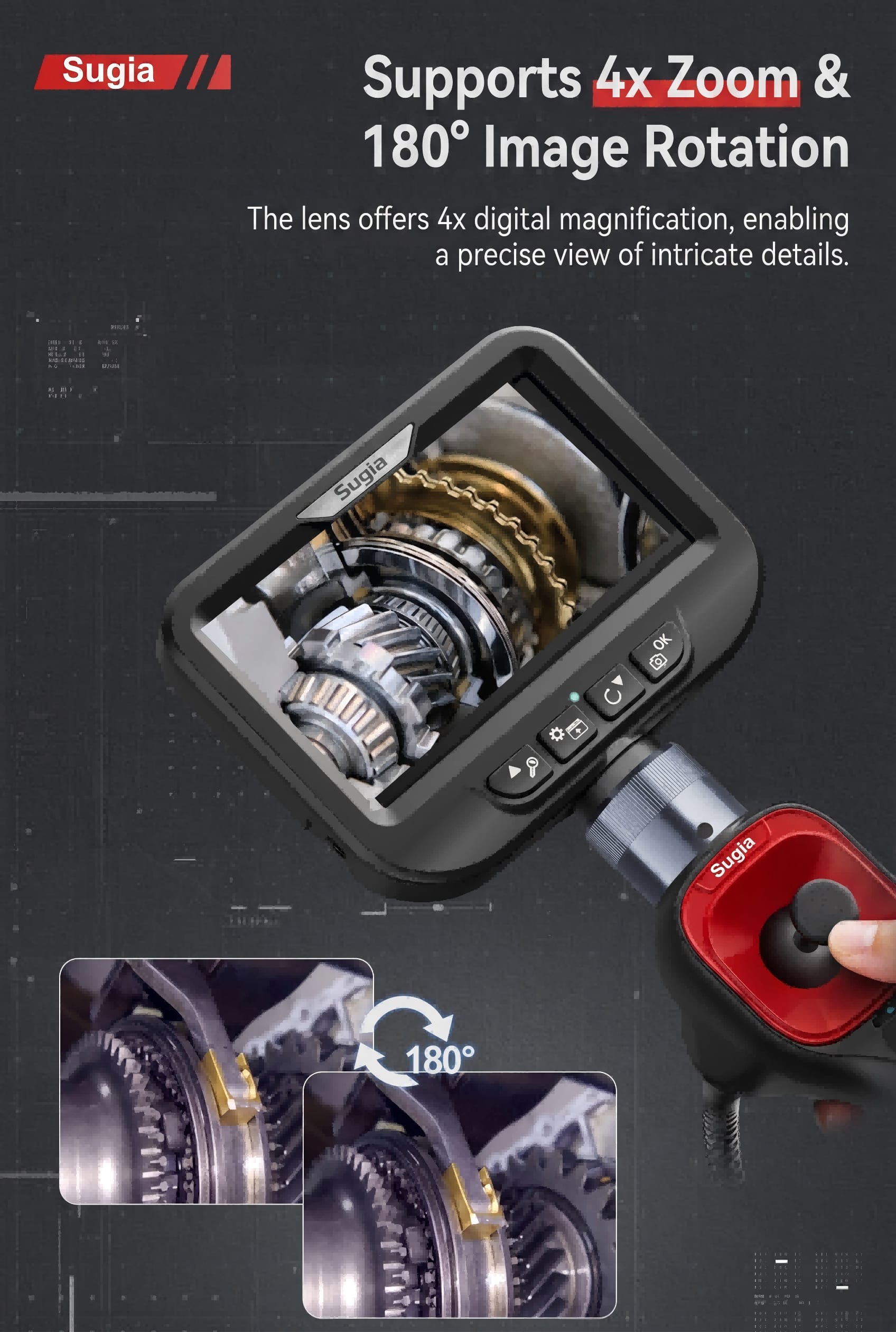

• Advanced Image Control: 4x digital zoom, 180° image rotation, and one-click photo and video capture — documentation is captured in the moment, not reconstructed later.
• Endurance: Built-in 4400 mAh high-capacity battery for extended on-site inspection sessions without swapping power packs.

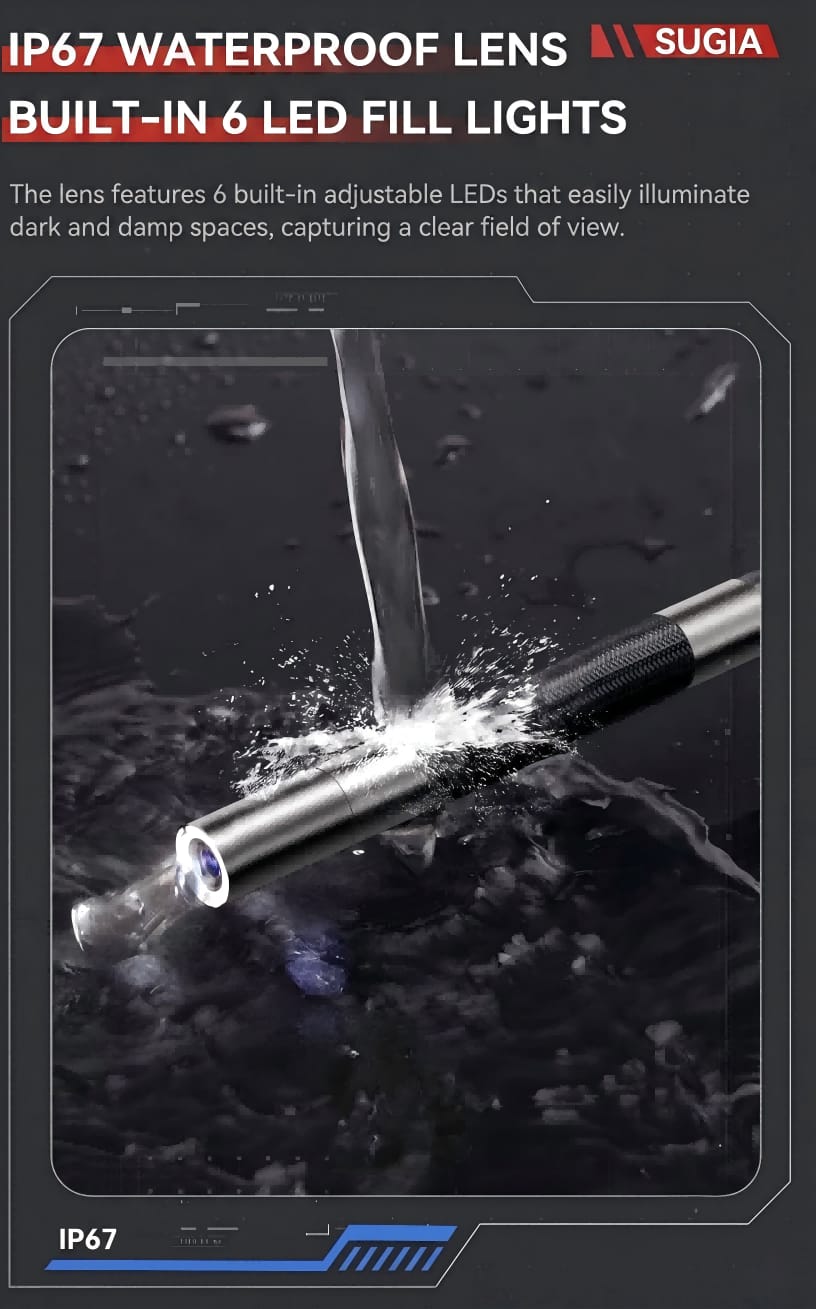

• Illumination: Six adjustable LED fill lights deliver a clear, evenly lit field of view in dark, damp, or lightless spaces.

Technical Specifications

Parameter	Value
Probe Outer Diameter	6.2 mm (F606B) / 3.9 mm (F604B)
Insertion Tube Length	1 m / 2 m / 3 m
Articulation	360° omni-directional, mechanical joystick
Image Sensor	1.0 MP / 2.0 MP CMOS
Display	4.3-inch IPS HD
Protection Rating	IP67 waterproof and dustproof
Digital Zoom	4x
Image Rotation	180°
Capture	One-click photo (JPEG) and video (MP4)
Illumination	6 adjustable LED fill lights
High-Temperature Alert	Built-in lens-protection warning
Battery	4400 mAh Li-ion
Available Models	F606B-6.2mm-1m, F606B-6.2mm-2m, F606B-6.2mm-3m, F604B-3.9mm-1m, F604B-3.9mm-2m

Target Applications

• Automotive Inspection: Cylinder bore, valve seat, turbocharger housing, and exhaust-catalyst internal inspection during engine teardown and rework.
• Pipeline Maintenance: Routine and forensic internal survey of industrial pipework, elbows, and welded joints for corrosion, scaling, and blockage.
• Circuit Inspection: Visual examination of enclosed electrical conduit, junction boxes, and inaccessible wiring runs.
• Component Testing: Internal verification of castings, machined bores, and assembled sub-components for porosity, burrs, and foreign-object debris.
• Heavy Machinery NDT: Field inspection of gearboxes, hydraulic manifolds, and large bearing housings where disassembly is cost-prohibitive.

Available Configurations

The F6-B platform ships in five configurations. Select the probe diameter and working length that match your access-port size and inspection depth.

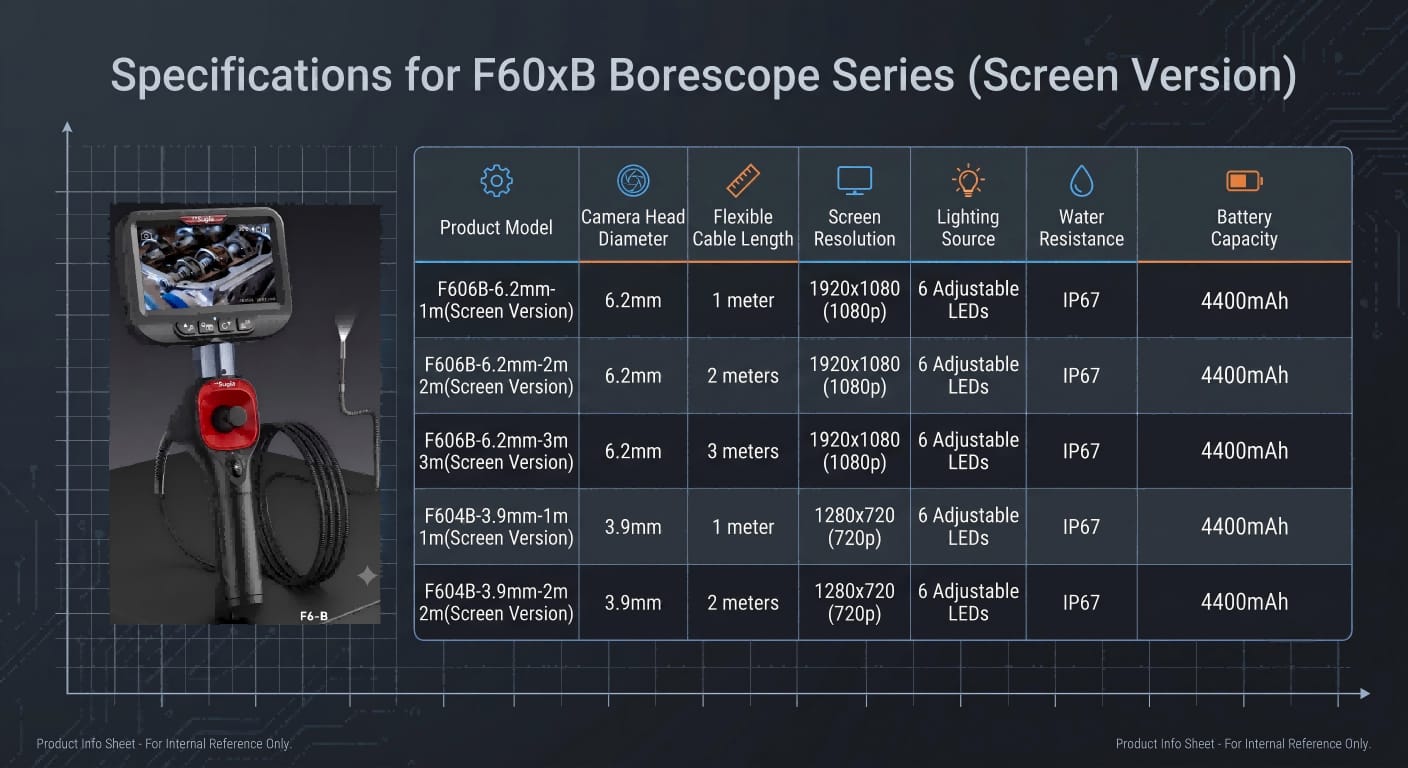

Model Code	Probe Diameter	Working Length
F606B-6.2mm-1m	6.2 mm	1 m
F606B-6.2mm-2m	6.2 mm	2 m
F606B-6.2mm-3m	6.2 mm	3 m
F604B-3.9mm-1m	3.9 mm	1 m
F604B-3.9mm-2m	3.9 mm	2 m
