2-Way Articulating Industrial Videoscope with 5" HD IPS Display

Product Overview

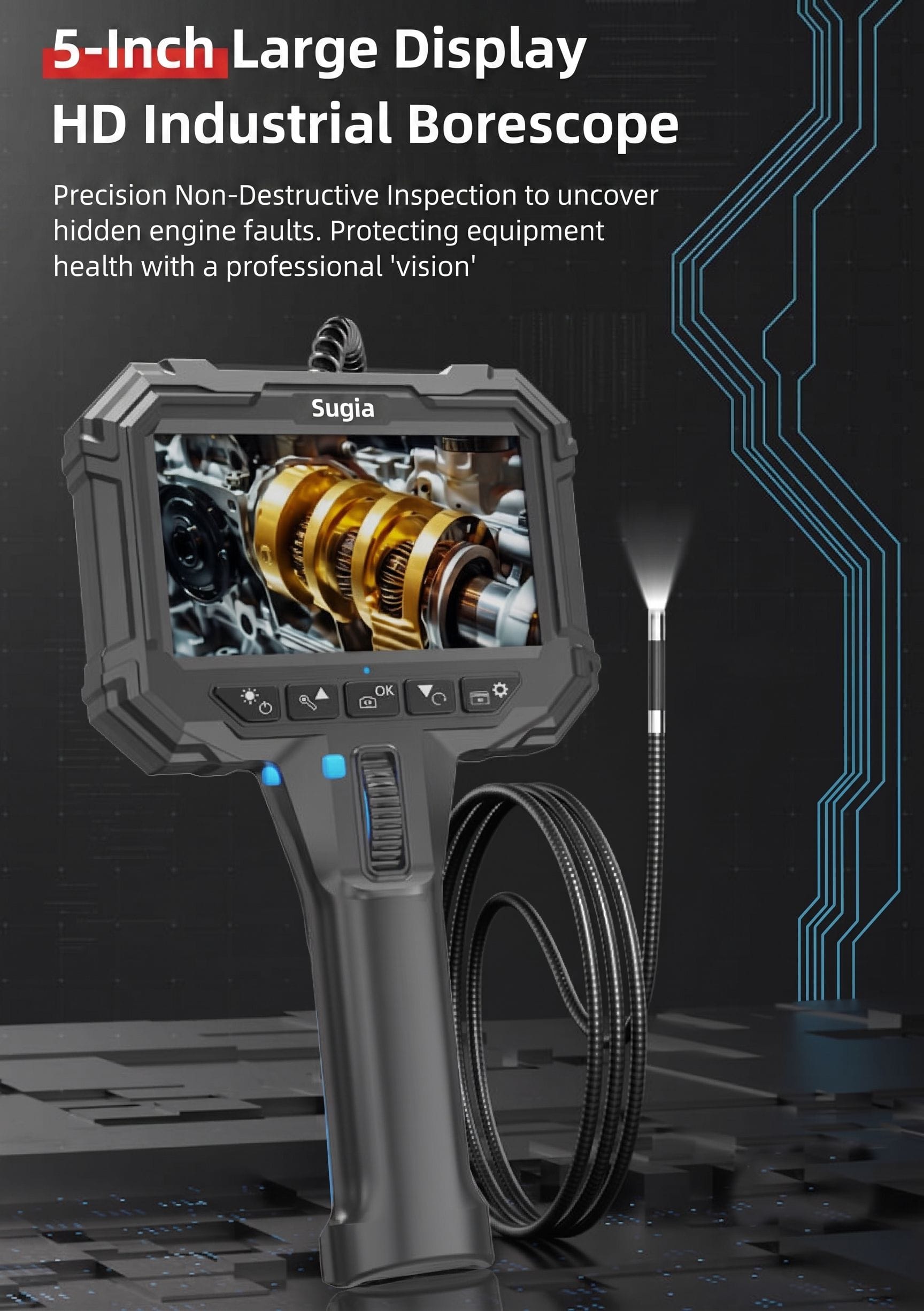

The Sugia OmniScope N5 is a professional-grade 2-way articulating industrial videoscope purpose-built for automotive engine diagnostics, pipeline surveys, and heavy machinery NDT. Its defining feature is a mechanical 180°–210° two-way rotating probe with an innovative lens lock — once the operator dials in a steering angle, the lock holds the position without spring-back, enabling stable, hands-free inspection of cylinder bores, valve seats, and turbocharger inlets.

Visuals are rendered on a bright 5.0-inch HD IPS display driven by a 1.0-megapixel (1280×720) CMOS sensor with a 90° field of view. The large screen allows inspectors to identify pitting, scoring, and carbon deposits on-site without an external monitor. A real-time temperature display and high-temperature protection circuit safeguard the system during engine cooldown inspections, automatically alerting the operator before the probe exceeds 90 °C.

On-board controls cover 1×/2×/4× digital zoom, image flip, and one-click photo (JPEG) and video (MP4) capture — documentation is immediate, with no external capture device required. The flexible metal insertion tube resists kinking in tight engine compartments, while Type-C and TF-card ports provide straightforward data offload. A 4400 mAh battery supports up to six hours of continuous operation, spanning an entire shift without recharging.

The N5 ships in four configurations: N505 with a 5.5 mm probe and N506 with a 6.2 mm probe, each available in 1 m, 2 m, or 3 m working lengths. CE, FCC, and ROHS certification confirms compliance across global regulatory environments.

Key Engineering Features

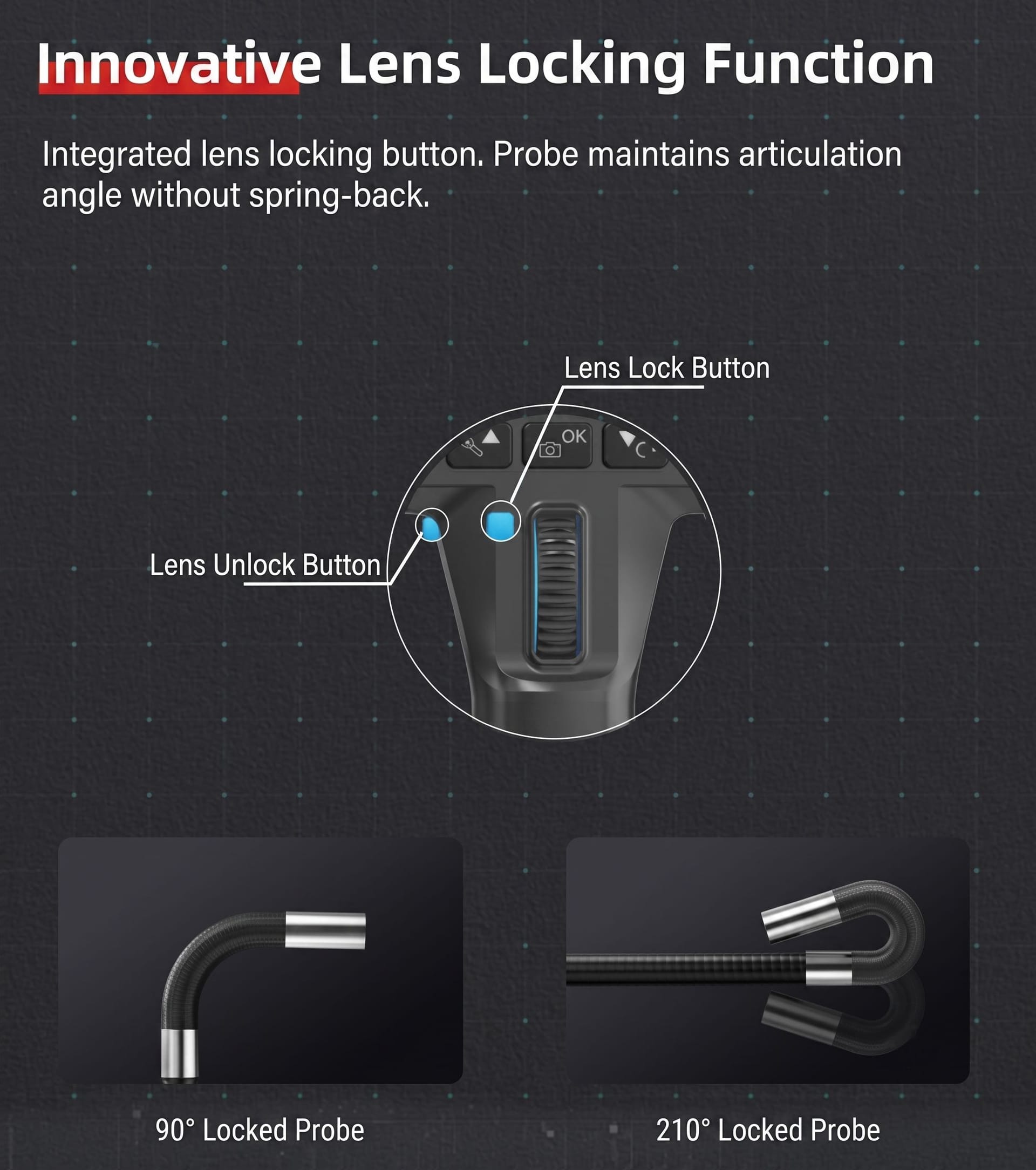

• 2-Way Articulation with Lens Lock: The mechanical steering assembly rotates the probe tip through 180°–210° in a single plane. Engaging the lens lock holds the angle rigidly, so complex engine cylinder inspections and turbine disk visual surveys can proceed without drift or spring-back — a decisive advantage in confined engine compartments where the probe must stay aimed at a specific defect while the operator documents the finding.
• 5-Inch HD IPS Display: A 5.0″ high-definition screen paired with a 1.0-megapixel (1280×720) CMOS sensor delivers crisp, stable imagery with a 90° field of view. Wide-angle visibility means fewer probe repositioning moves per inspection cycle.
• High-Temperature Protection: A real-time temperature readout on the display lets the operator monitor probe-tip temperature continuously. A built-in protection circuit triggers an alert before the probe reaches 90 °C, safeguarding the sensor and illumination LEDs during hot-engine and post-shutdown inspections.

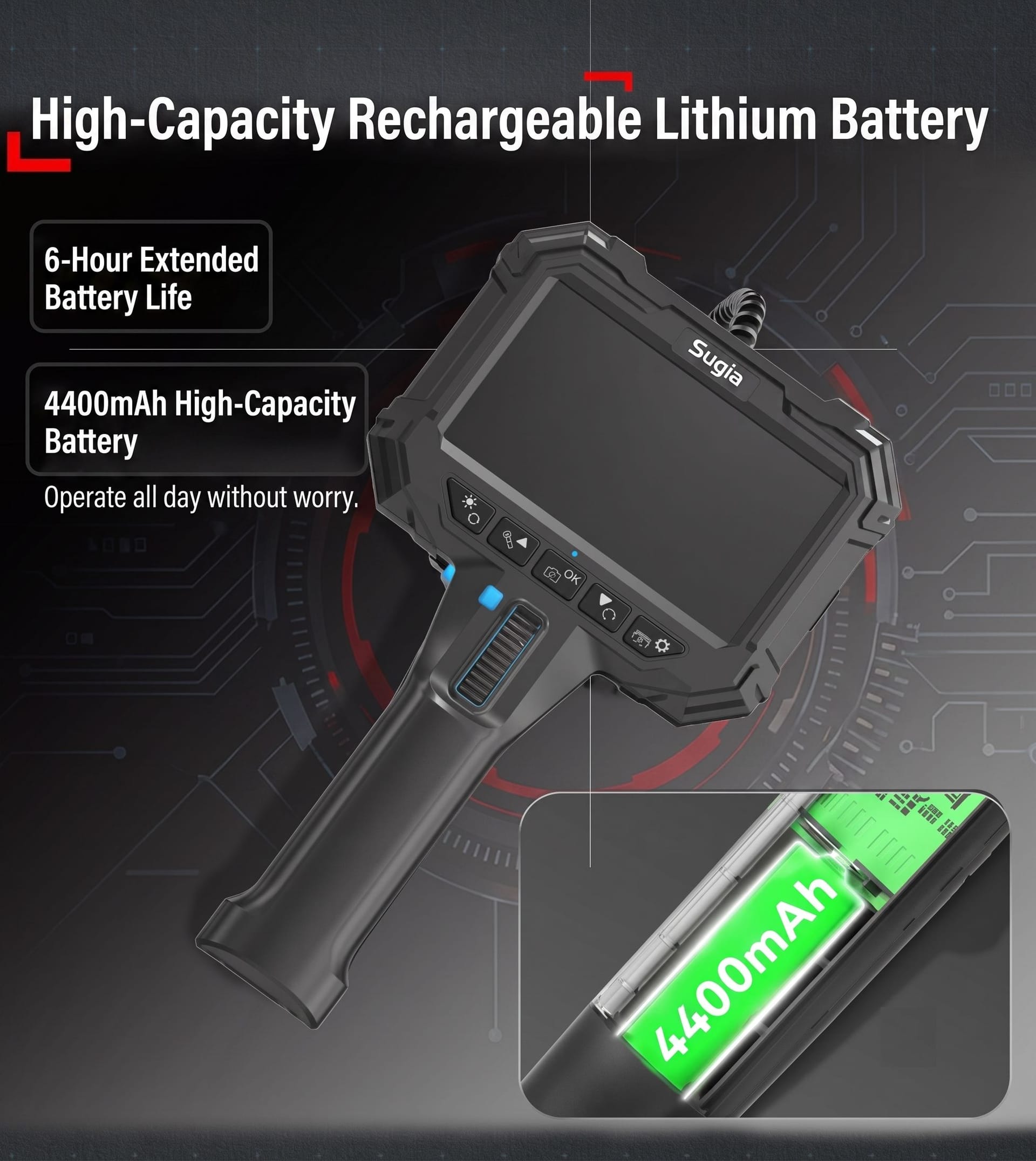

• Extended Battery Life: The 4400 mAh lithium battery sustains up to six hours of continuous operation — enough for a full inspection shift without carrying spare packs.
• Advanced Image Control: 1×/2×/4× digital zoom, image flip, and one-click photo and video recording are available directly from the handpiece controls.
• Industrial Build: Flexible metal insertion tube resists kinking. Type-C and TF-card interfaces enable fast data transfer. CE, FCC, and ROHS certified for global deployment.

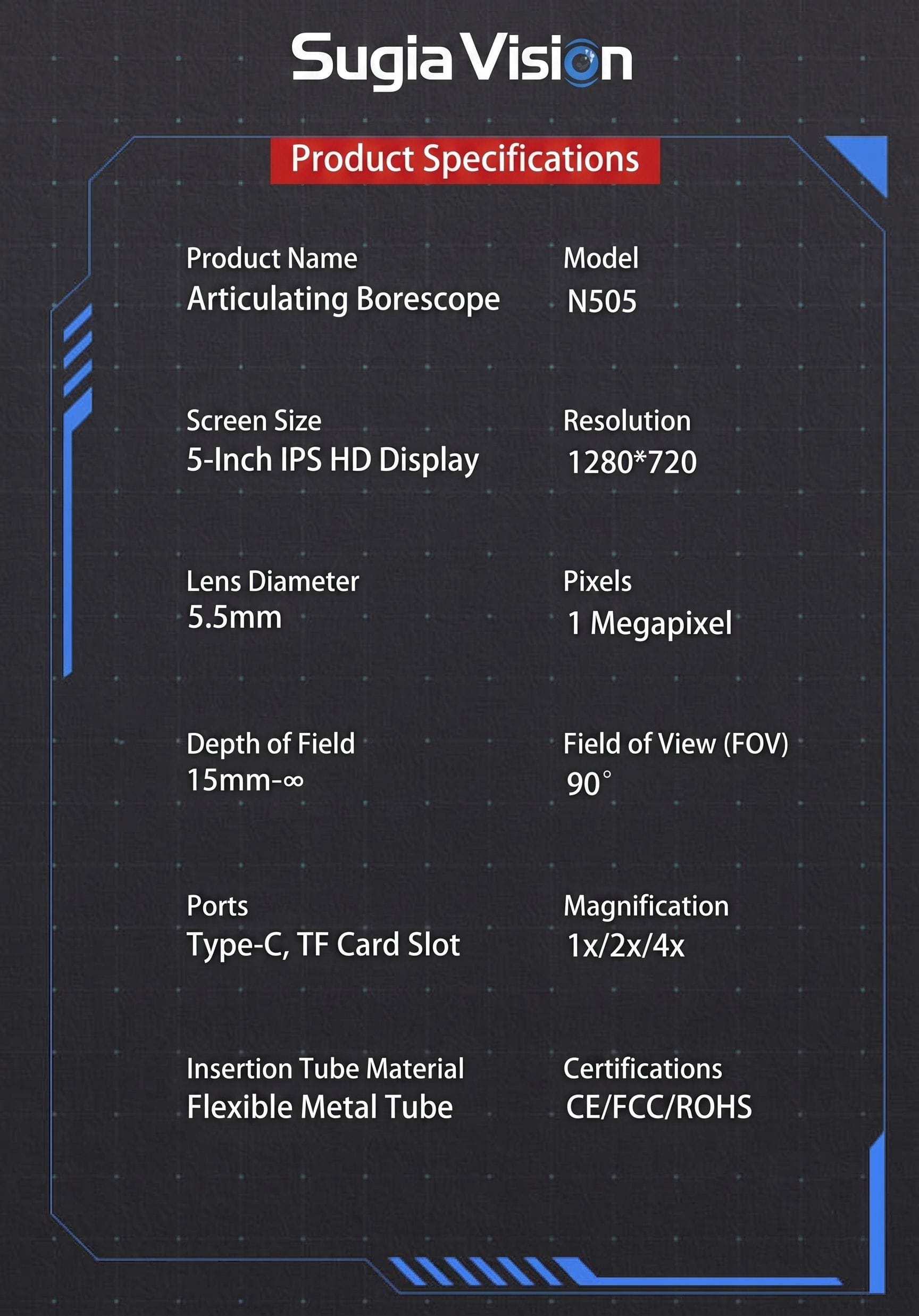

Technical Specifications

Parameter	Value
Display	5.0-inch HD IPS
Image Sensor	1.0 MP CMOS (1280×720)
Field of View	90°
Probe Outer Diameter	5.5 mm (N505) / 6.2 mm (N506)
Insertion Tube Length	1 m / 2 m / 3 m
Articulation	2-way, 180°–210° with mechanical lens lock
Digital Zoom	1× / 2× / 4×
Image Flip	Supported
Capture	One-click photo (JPEG) and video (MP4)
High-Temperature Alert	Real-time display + protection up to 90 °C
Battery	4400 mAh Li-ion, up to 6 h continuous
Insertion Tube Material	Flexible metal
Data Ports	Type-C, TF card
Certifications	CE, FCC, ROHS
Available Models	N505-5.5mm-1m, N506-6.2mm-1m, N506-6.2mm-2m, N506-6.2mm-3m

Target Applications

• Automotive Engine Inspection: Cylinder bore, valve seat, combustion chamber, and turbocharger housing visual diagnostics during teardown, rework, and QA audits.
• Pipeline Maintenance: Internal survey of industrial pipework, drain lines, HVAC ducts, and concealed conduit for corrosion, blockage, and weld-integrity verification.
• Circuit Inspection: Visual examination of enclosed wiring harnesses, junction boxes, and electrical raceways in automotive and industrial installations.
• Component Testing: Internal QC of castings, machined housings, and sub-assemblies for porosity, burrs, and foreign-object debris.
• Heavy Machinery NDT: Field inspection of gearbox internals, hydraulic manifolds, bearing housings, and engine block water jackets without full teardown.

Available Configurations

Model Code	Probe Diameter	Working Length
N505-5.5mm-1m	5.5 mm	1 m
N506-6.2mm-1m	6.2 mm	1 m
N506-6.2mm-2m	6.2 mm	2 m
N506-6.2mm-3m	6.2 mm	3 m
